Description

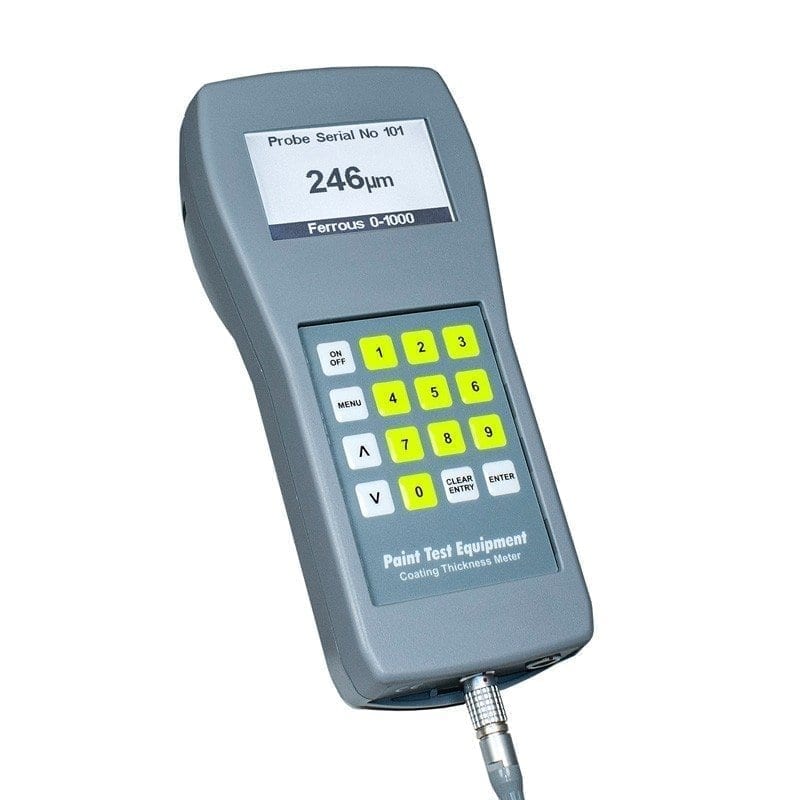

The Coating Thickness Meter (C5007)Â easily measures all coatings on metallic substrates using the magnetic induction or eddy current principles, ensuring the correct coating thickness has been applied.
The C5007 Coating Thickness is supplied in an industrial foam-filled carry case with two flexible lead measuring probes (Ferrous Probe 0–2000μm & 0–5mm and Non-Ferrous Probe 0–2000μm), set of 8 calibration foils and two zero disks (Ferrous and Non-Ferrous). The USB Computor Download Cable is available as a optional extra.
One of the most advanced Coating Thickness Meters on the market, using up-to-date technology in a robust portable instrument, incorporating all the following user functions through a menu-driven back-lit display.
Calibration
Calibrate on any blasted profile or shape of substrate using the Calibration Foils supplied.
Calibration Memories
The calibration settings for different substrates and shapes can be stored and recalled when required, saving time on recalibration.
Statistics
Continually shows Mean, Number of Readings, Max/Min, Coefficient of Variation and Standard Deviation.
Hi/Lo Limits
Pass and fail with audible and visual alarm.
Metric/Imperial
Select the measurement units that you require.
Batching
Measurements that are taken can be stored into batches which incorporate batch number, unique job number, and date and time. You can also go back to previous batches and look at the statistics and add or cancel readings from previous batches.
Download
Allows all measurements, statistics and out-of-limit readings to be downloaded to a computer either by batch number or job number into microsoft word or excel.
Calibration certificates with traceability to UKAS is an optional extra, the certificates are supplied in a paper format
